Board and Batten Hallway Accent Wall in Nocatee, Jacksonville FL

The Project

This one came from a homeowner in Nocatee who had invested in a beautiful home but felt like the main hallway was letting the rest of the house down. The space already had a lot going for it — arched pass-throughs, a tray ceiling, and warm wood-look tile underfoot — but the walls were completely blank. Long stretches of flat drywall with nothing to say. They wanted something that would make the hallway feel intentional, the kind of detail that makes guests stop and look twice.

AVP Construction JAX came out, measured the corridor from end to end, and proposed a full board and batten accent wall treatment running the entire length of both sides. The result is one of the most striking hallway transformations we've done in Jacksonville, Florida.

The Challenge

On paper this hallway looked straightforward, but the details were anything but. The arched openings — two of them framing pass-throughs along the corridor — meant the vertical batten runs couldn't simply stop at a square corner. The paneling had to wrap cleanly around curved drywall returns and terminate in a way that looked purposeful, not patched. Getting that transition right required careful layout and precise cuts on every board that touched an arch.

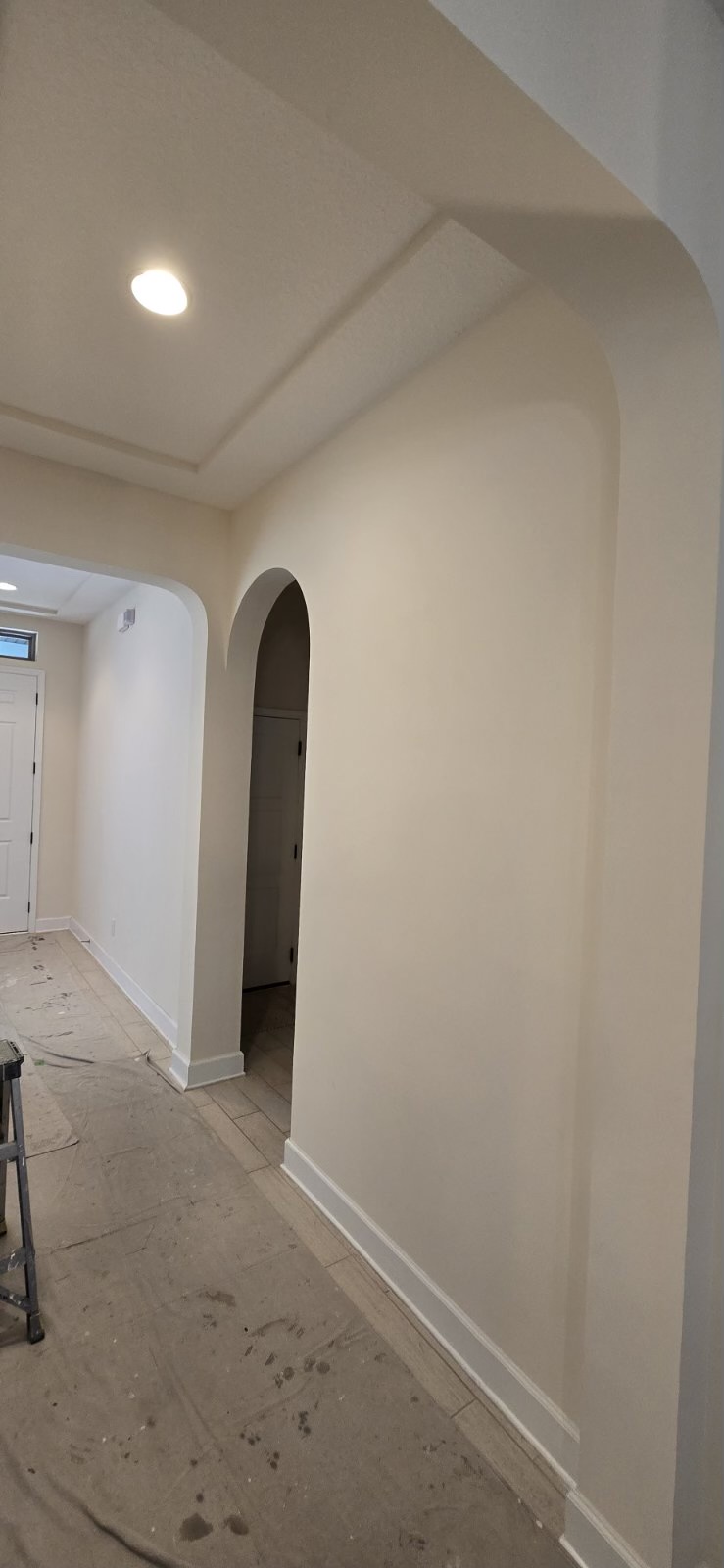

In the before photo you can see exactly what we were starting with: a tall, wide wall beside one of those arched openings, completely bare from the baseboard to the tray ceiling above. Lots of potential, zero character. The arches themselves are gorgeous architectural details, and the goal was to build millwork that celebrated them rather than competed with them.

The Build

We started by laying out the batten spacing across the full wall length so that each panel field landed symmetrically — no awkward slivers at the ends, no battens that felt crowded or stretched. Once the layout was dialed in, the vertical boards went up first, glued and nailed into the drywall with construction adhesive and finish nails to keep everything flush and rattle-free for the long term.

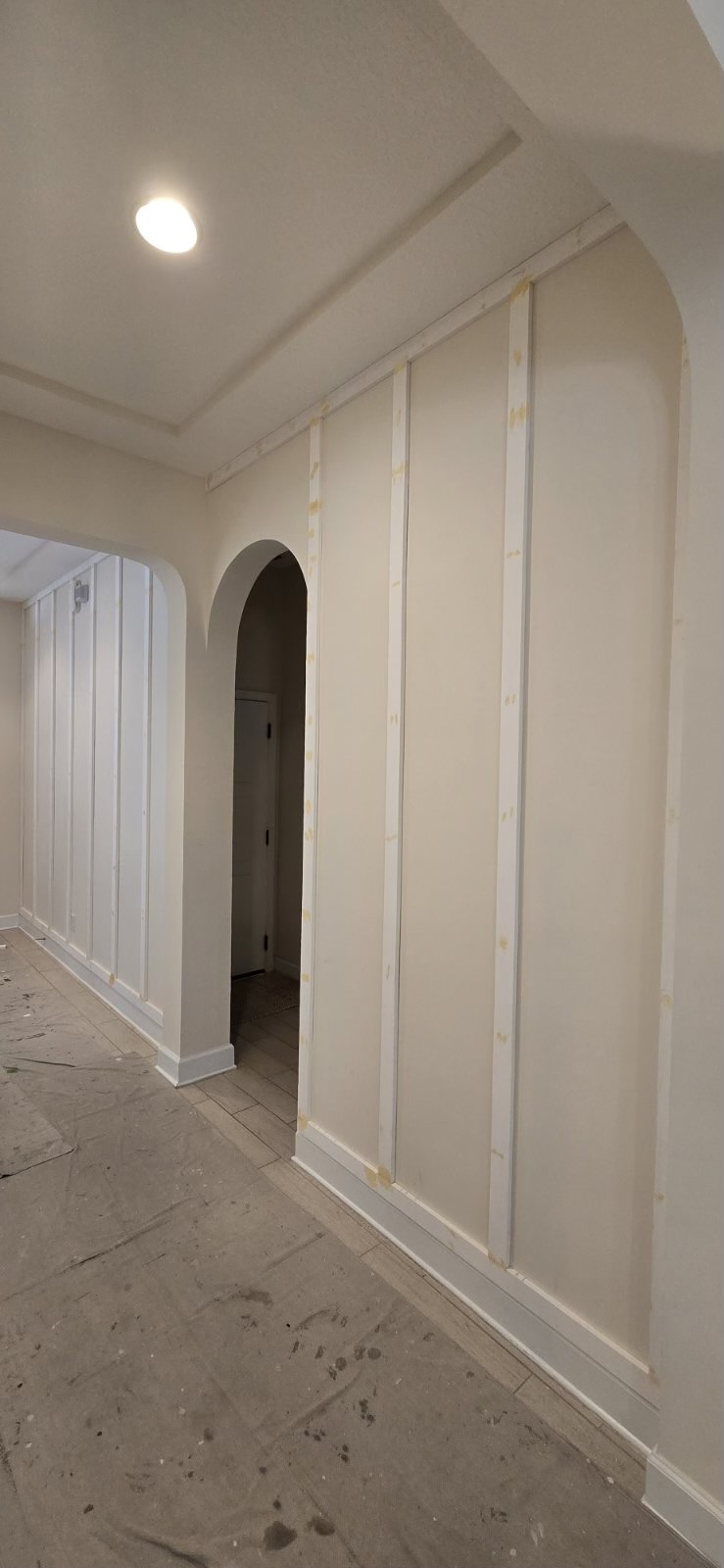

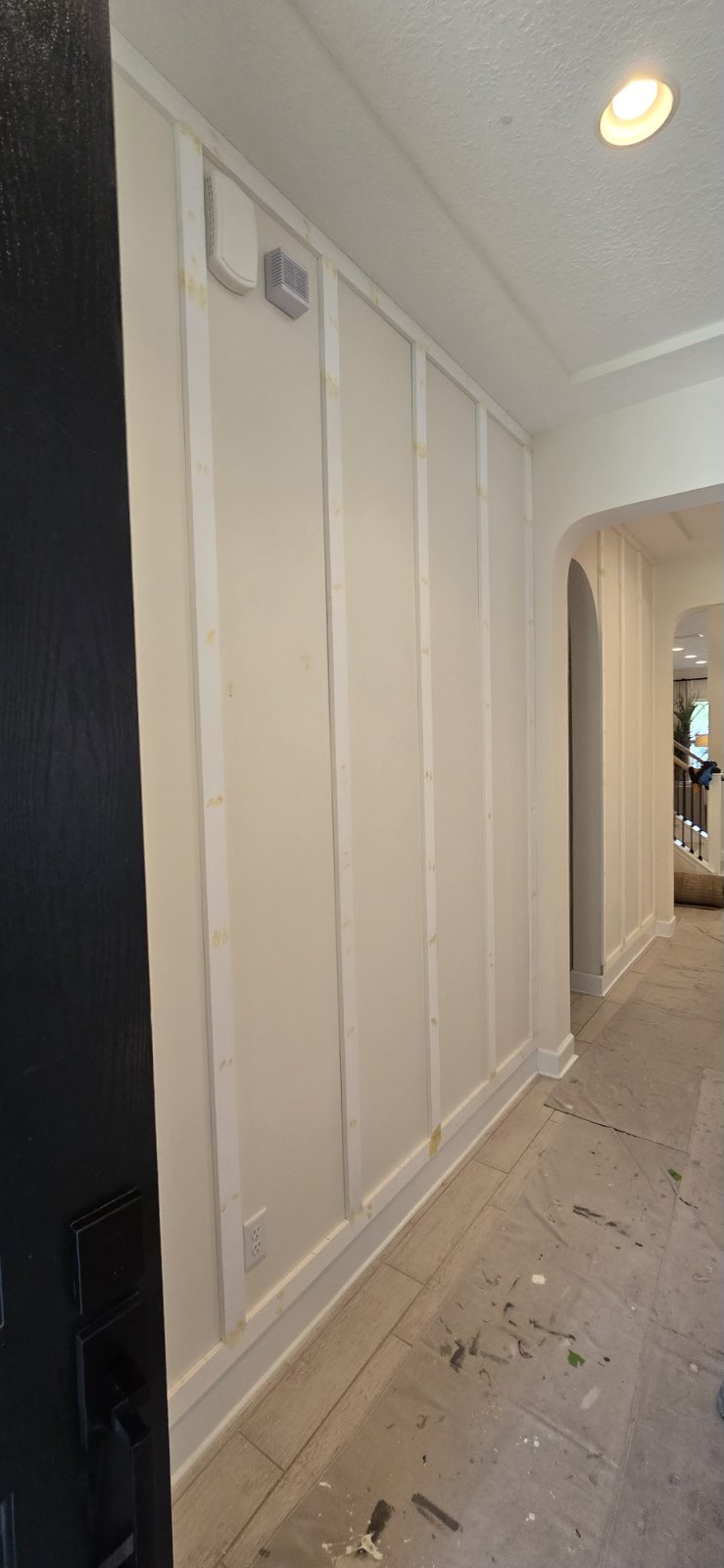

Here you can see the battens freshly applied, the adhesive still yellowing at the seams before it fully cures. Even at this raw stage you can see how the rhythm of the vertical boards starts to give the wall a sense of scale and proportion it didn't have before. The existing baseboard was incorporated cleanly at the bottom, tying the new millwork into the original trim profile.

With the battens set on both sides of the hallway, the full pattern comes into focus. Looking down the corridor in this during shot, you can already see how the paneling works with the arched openings — the vertical lines draw your eye toward the front door while the arches punctuate the rhythm. The top of the panel treatment was designed to sit just below the tray ceiling detail, keeping a clear visual separation between the millwork and the ceiling plane above.

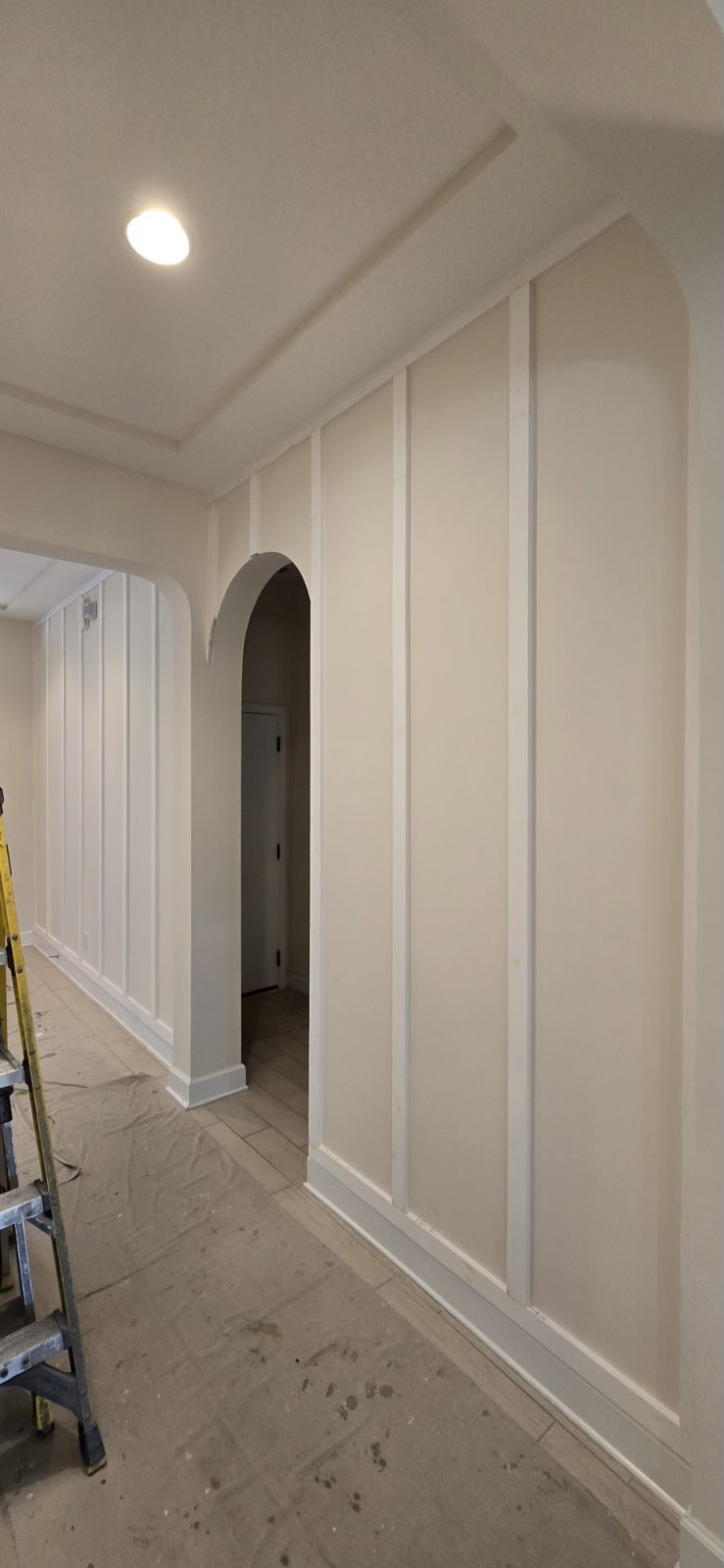

Once both walls were fully boarded and the panel proportions confirmed, it was time for paint prep. This photo shows the paneling nearly complete on the right-hand wall — the batten tops trimmed to follow the arch profile — and the hallway beginning to read as a finished room rather than a construction site. At this stage the crew also addressed all the nail holes, seams, and any small gaps at the wall interface with filler before masking everything off for spray finishing.

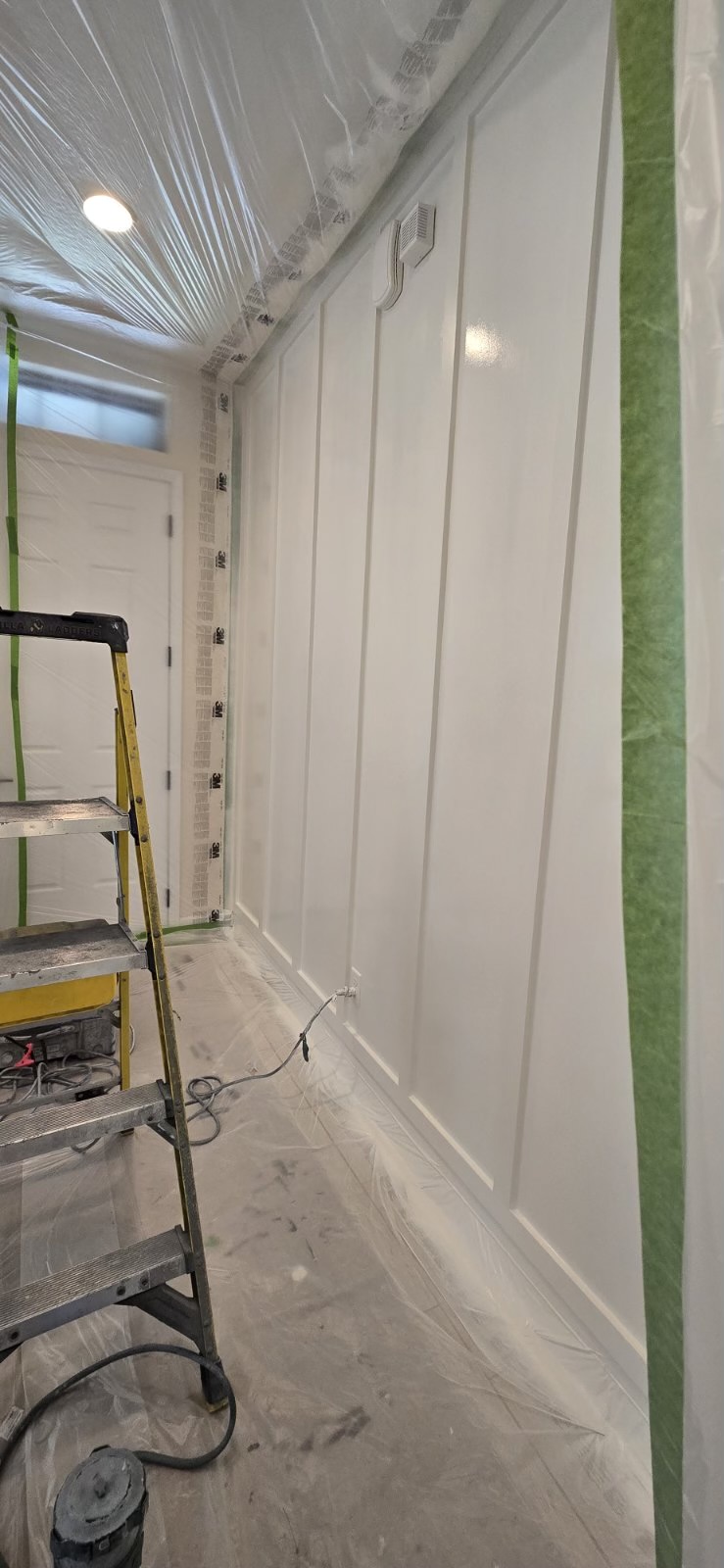

Spray day. The entire hallway was masked floor to ceiling with plastic sheeting and tape — floors covered, ceiling edges taped tight — so we could apply a smooth, consistent finish coat across the full wall surface, battens and field panels together. Spraying rather than rolling is what gives board and batten millwork that furniture-quality look: no lap marks, no roller texture, just a clean, even sheen that makes the shadow lines between the battens read crisply. The ladder in frame gives you a sense of how tall these walls are — this is a full-height treatment, not a half-wall wainscot.

Here the finish coat is going on and the transformation is already undeniable. The wet paint catches the light and you can see the depth the battens create — subtle shadow lines that add dimension without any visual noise. The arched opening on the right is framed by the paneling on both sides, and the two elements complement each other beautifully. This is the moment on a job when the homeowner usually shows up and gets very quiet in a good way.

The Result

Once the masking came down and the floors were swept clean, the hallway looked like it belonged in a custom-built home — because, in a real sense, it now does. The board and batten accent wall runs the full length of the corridor on both sides, floor to ceiling, with clean white battens that pop against the warm wall color and frame each of the arched openings like a picture frame around a painting.

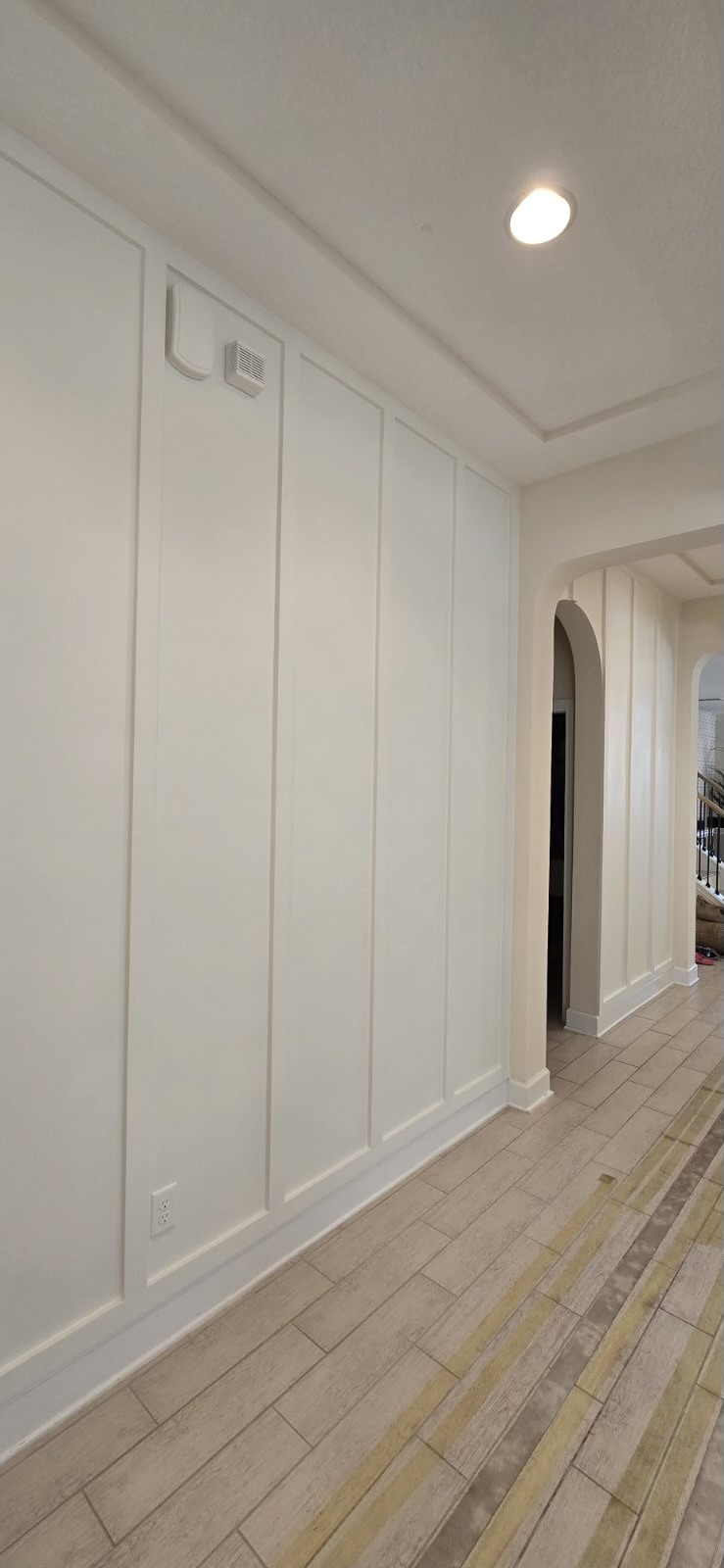

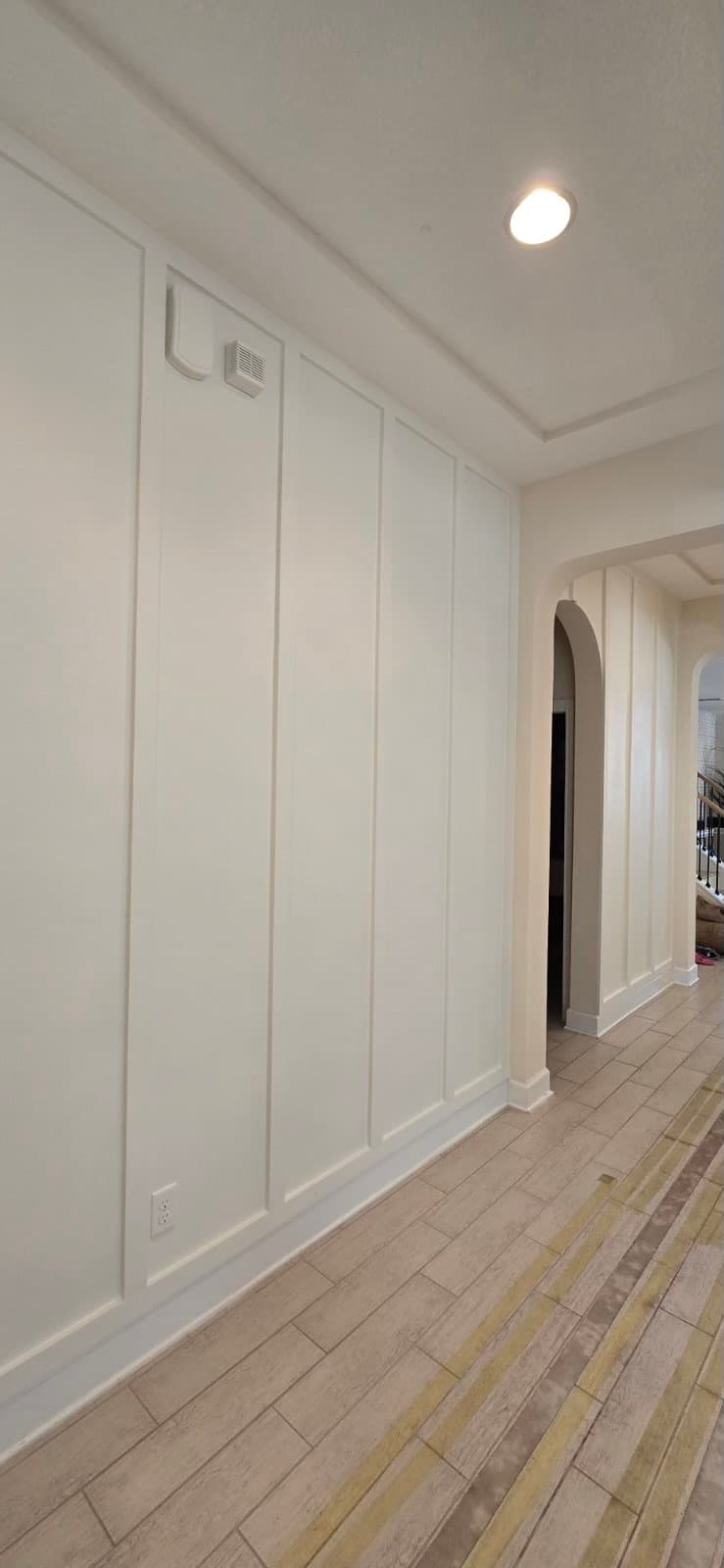

Looking straight at the wall in this finished shot, the paneling is crisp, the shadow lines are sharp, and the whole thing reads as intentional and refined. The HVAC vent and sensor in the upper panel field were carefully integrated — boxed into the layout so they sit within a panel rather than awkwardly overlapping a batten. That kind of planning is what separates a quality millwork installation from a rushed one.

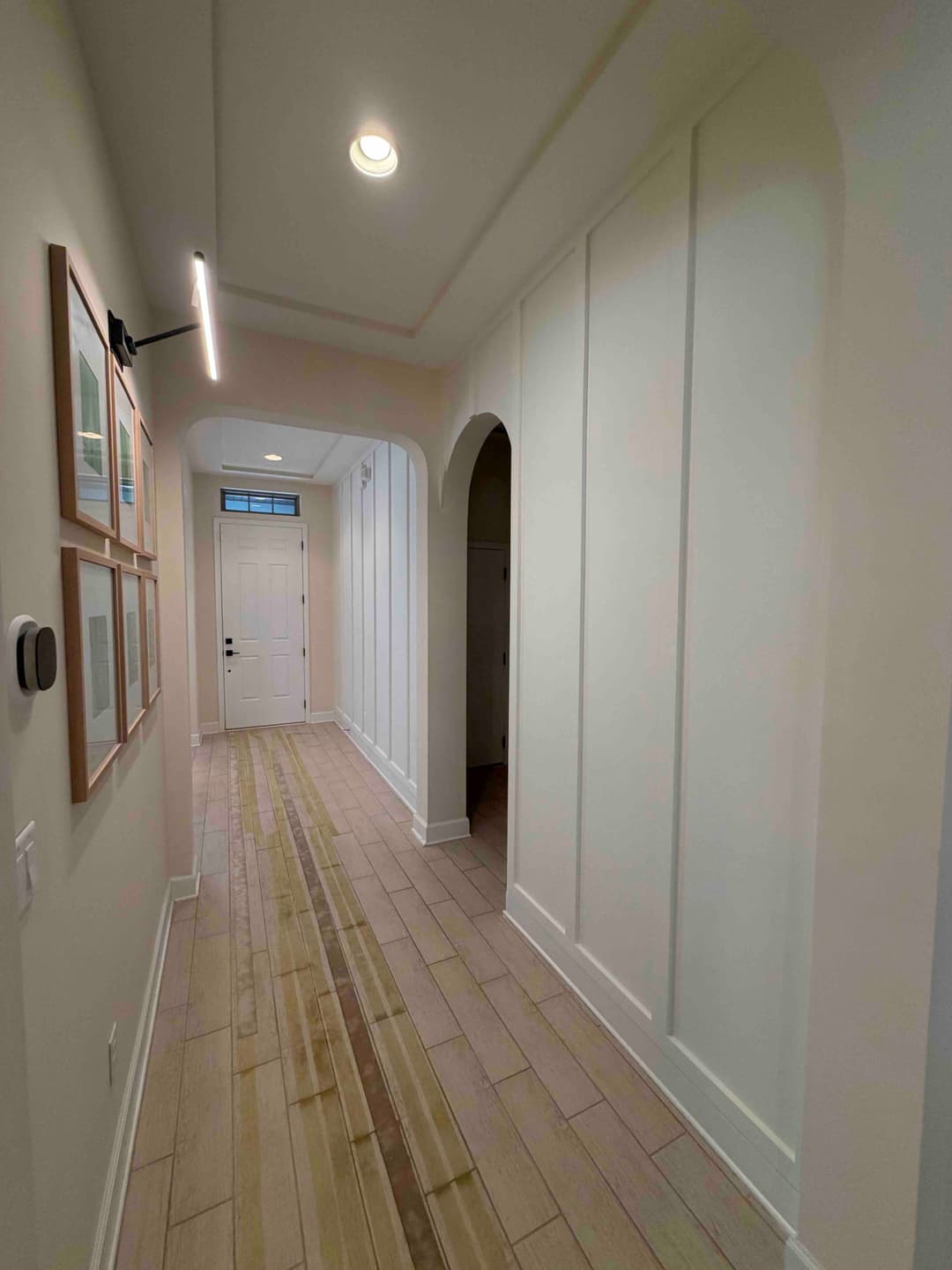

Pulling back to the full hallway view, the transformation is complete. What was once a long, forgettable corridor in a Nocatee home is now one of the first things you notice when you walk through the front door. The tray ceiling, the arches, the wood-look tile, and the board and batten walls all work together as a coherent design — a hallway that finally matches the quality of the rest of the house. This is the kind of finish carpentry detail that adds real perceived value to a home in Duval County, and it's exactly what we love doing.

Ready for Your Own Accent Wall in Nocatee?

If you have a hallway, a living room wall, or any space in your Nocatee or greater Jacksonville, Florida home that feels like it's missing something, board and batten millwork might be exactly what it needs. AVP Construction JAX specializes in custom finish carpentry that's built to last and finished to impress. Reach out and tell us what you're thinking — we'd love to take a look.
